Industrial Waste Treatment

Mine Tailings Seepage Control

Poor corrosion resistance of composite cloth
Conventional drainage network composite fabric is made of PET, its acid and alkali
resistance is poor, and easy to hydrolyze, in the tailings pond, red mud dumps, landfills and
other leachate drainage system is easy to be corroded by acid and alkali and failure.

Share:

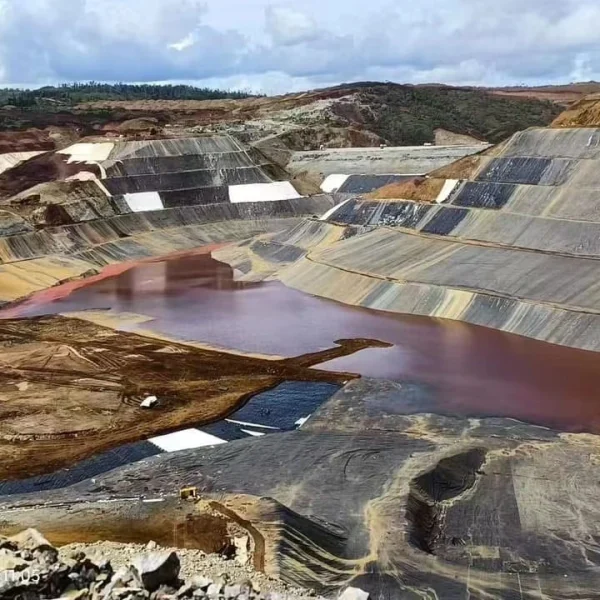

Applications of Geomembrane 2_23_11zon

Haoyang’s Advanced Solutions

Indonesia OBI Nickel Project (Contract: CN¥19.09M)

DRC TFM Copper Mine

Results Achieved:
Zero leakage since installation
30% longer lifespan vs. conventional line

Application Products

Poor corrosion resistance of composite cloth Conventional drainage network composite fabric is made of PET, its acid and alkali resistance is poor, and easy to hydrolyze, in the tailings pond, red mud dumps, landfills and other leachate drainage system is easy to be corroded by acid and alkali and failure. Pore structure of composite cloth is easy to be clogged Conventional geotextile is loose, poor tension, after the landfill landfill particles invade the pore space and the core of the network leading to drainage channel blockage. Poor compression resistance of the mesh core Conventional drainage mesh has large pore size, unstable core structure, poor compressive capacity, and is easily deformed after being pressurized by the landfill, resulting in the drainage channel becoming small or closed.

Industry Challenges

Conventional geotextile is loose, poor tension, after the landfill landfill particles invade the pore space and the core of the network leading to drainage channel blockage. Poor compression resistance of the mesh core Conventional drainage mesh has large pore size, unstable core structure, poor compressive capacity, and is easily deformed after being pressurized by the landfill, resulting in the drainage channel becoming small or closed.

Technical specifications

PerformanceTest StandardUnitHaoyang28kN34kN40kN
Q/CR 549.5-2016PP filament spunbondedQ/CR 549.5-2016PP filament spunbondedQ/CR 549.5-2016PP filament spunbonded
Gram WeightISO 9864 (GB/T 13762)g/m²400≥400500≥500600≥600
ThicknessISO 9863 (GB/T 13761)mm3.4≥3.34.2≥4.04.6≥4.5
Tensile StrengthISO 10319 (GB/T 15788)kN/m28.5≥2835≥3440.5≥40
ElongationISO 10319 (GB/T 15788)%70/8040–10070/8040–10070/8040–100
Grab StrengthASTM D 4632 (GB/T 24218.18)N1730≥17002200≥21502850≥2800
Tear StrengthGB/T 13763N780≥750870≥8501050≥1000
CBR Bursting StrengthISO 12236 (GB/T 14800)N4400≥42005500≥54006250≥6200
Equivalent Aperture (O90)ISO 12956 (GB/T 17634)mm0.110.07–0.30.090.07–0.30.080.07–0.3
Vertical Permeability CoefficientISO 12958 (GB/T 17633)cm/s3.0×10^-1≥1×10^-22.9×10^-1≥1×10^-22.8×10^-1≥1×10^-2
UV Resistance – Tensile Strength RetentionISO 10319 (GB/T 15788)%85≥8085≥8085≥80
Acid and Alkali Resistance – Tensile Strength RetentionISO 10319 (GB/T 15788)%93≥9093≥9093≥90
Product Specificationmm1000–6500

Resources

Mine Tailings Seepage Control
Poor corrosion resistance of composite

Explore the case studies

High-speed railway project
Ballastless track sliding layer: used in the sliding layer of high speed rail track structure (two cloths and one membrane structure), located between the roadbed slab and bridge deck, requires strong alkali resistance to cope with the alkaline environment of concrete. Isolation layer: preventing mixing between roadbed and track structure, ensuring track stability.
Roadbed reinforcement for road and railroad construction
Enhance the bearing capacity of weak foundation, reduce uneven settlement, applied to highway, railroad roadbed and airport runway. Isolation and protection: isolate ballast and roadbed, prevent reflection cracks and frost damage, prolong the service life of road surface.
water conservancy engineering dike and river channel reinforcement
Used for seepage control and reinforcement of reservoirs, dykes and rivers to enhance structural stability. Drainage and filtration: used as filter layer in earth and stone dams and drainage systems to prevent soil erosion and maintain water permeability.
